Chisel Nozzle

Chisel Nozzle

$0.00

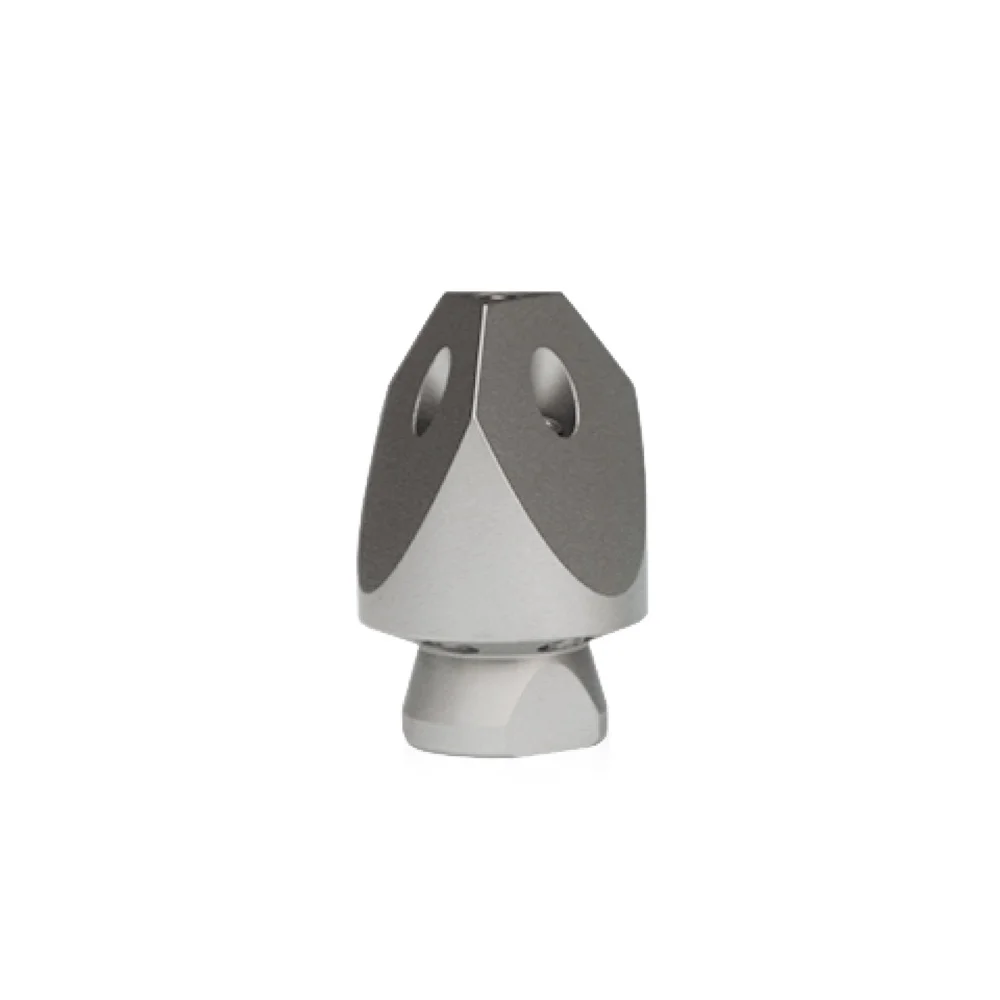

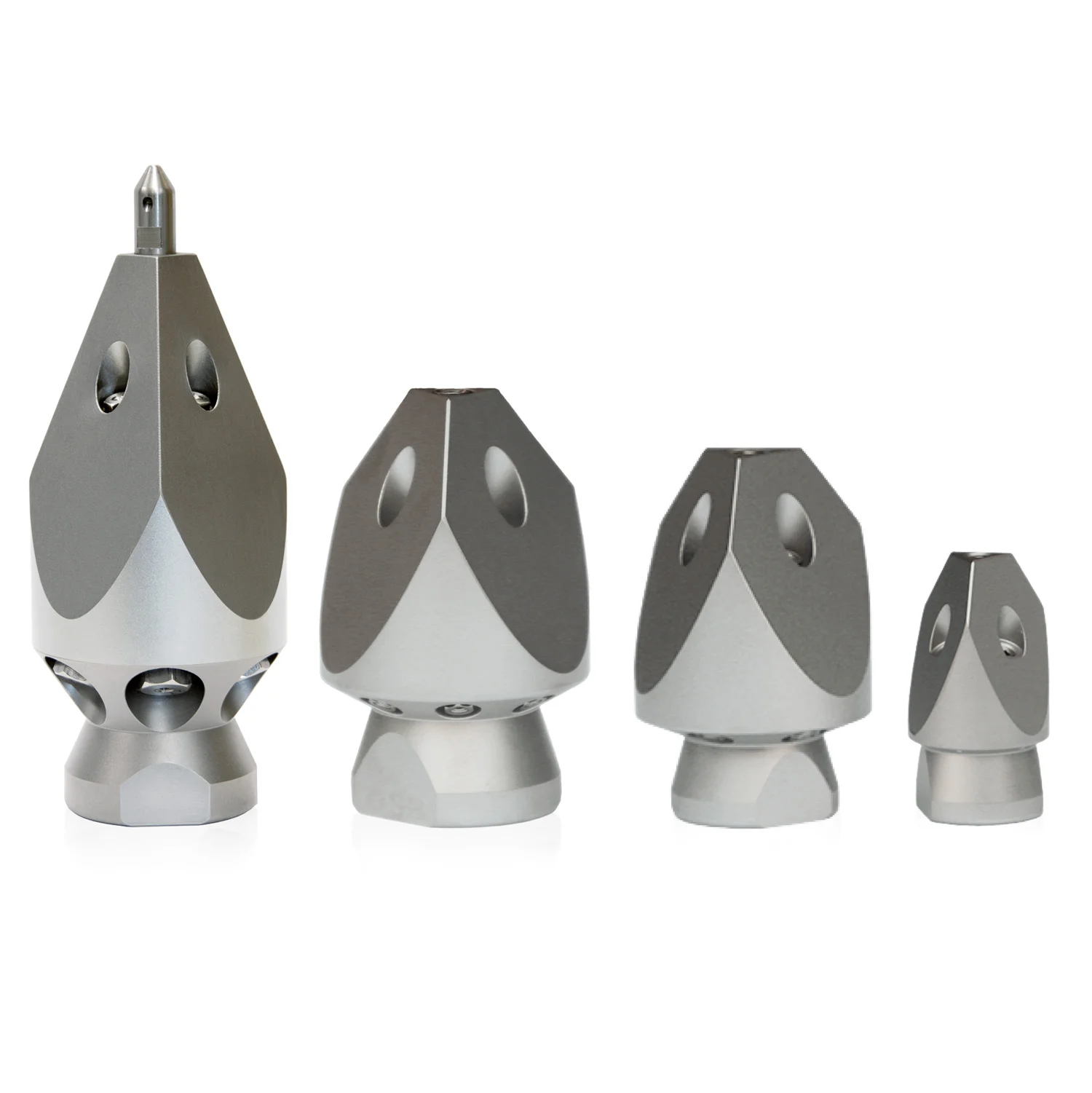

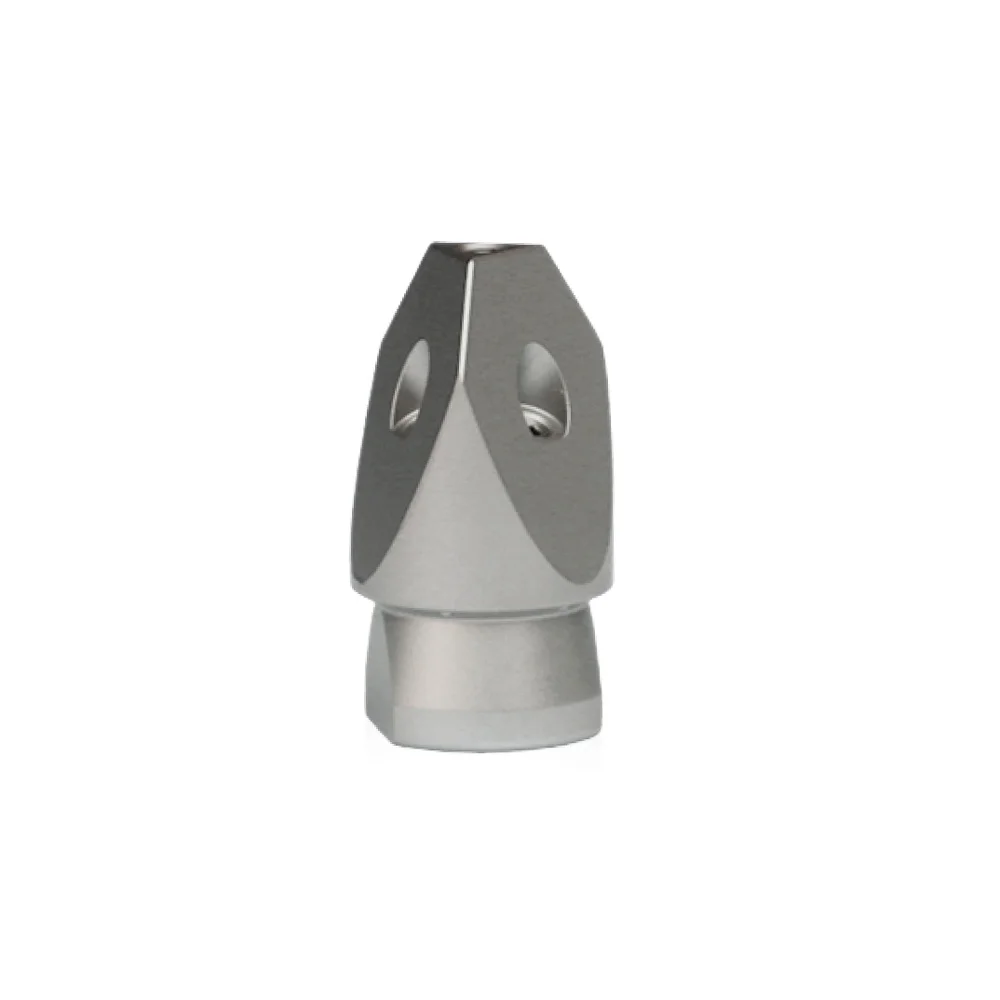

The Chisel Nozzle is a reliable sewer cleaning nozzle that is a must have! Sharp edges and multiple forward jets deliver powerful penetration to effectively open tough total blockages. A drill point can be added to the front of the Chisel as well.

Overview:

Round Pipes
Recycled Water Approved
Tier 2, Tier 1

Quantity:

Add To Cart



				Product Specs
				Chisel Nozzle


					Part
 Number
				Hose Con.
(NPT)
				GPM/
 Minimum
				Pipe
Diameter (in)
				Dimensions
(L x W)
				Weight
(lbs)
				Rear
 Jets
				Front
 Jets
				Radial
 Jets
				Product
 Tier



					1316
					1 1/4"
					100
					8" - 24"
					7.08" x 3.34"
					9.7
					6
					5
					-
					Tier 2


					1317
					1 1/4"
					80
					8" - 20"
					6.29" x 2.95"
					5.51
					6
					5
					-
					Tier 2


					1318
					1"
					60
					8"- 20"
					6.29" x 2.95"
					5.51
					6
					5
					-
					Tier 2


					1319
					1 1/4"
					80
					8" - 20"
					3.93" x 2.36"
					1.76
					10
					4
					-
					Tier 2


					1320
					1"
					80
					8" - 15"
					3.74" x 2.36"
					1.5
					6
					4
					-
					Tier 2


					1323
					3/4"
					30
					6" - 12"
					2.95" x 1.96"
					0.66
					6
					4
					-
					Tier 2


					1325
					1/2"
					12
					4" - 8"
					2.36" x 1.18"
					0.33
					3
					4
					-
					Tier 1


					1328
					3/8"
					12
					2" - 4"
					1.57" x .98"
					<0.22
					6
					4
					-
					Tier 1


					1330
					1/4"
					6
					2" - 4"
					1.18" x .78"
					<0.22
					6
					4
					-
					Tier 1


					1331
					1/4"
					4
					2" - 4"
					1.18" x .78"
					<0.22
					3
					4
					-
					Tier 1





		SOURCE: USB-USA, LLC.
