Bagger Max 3D

Bagger Max 3D

0.00

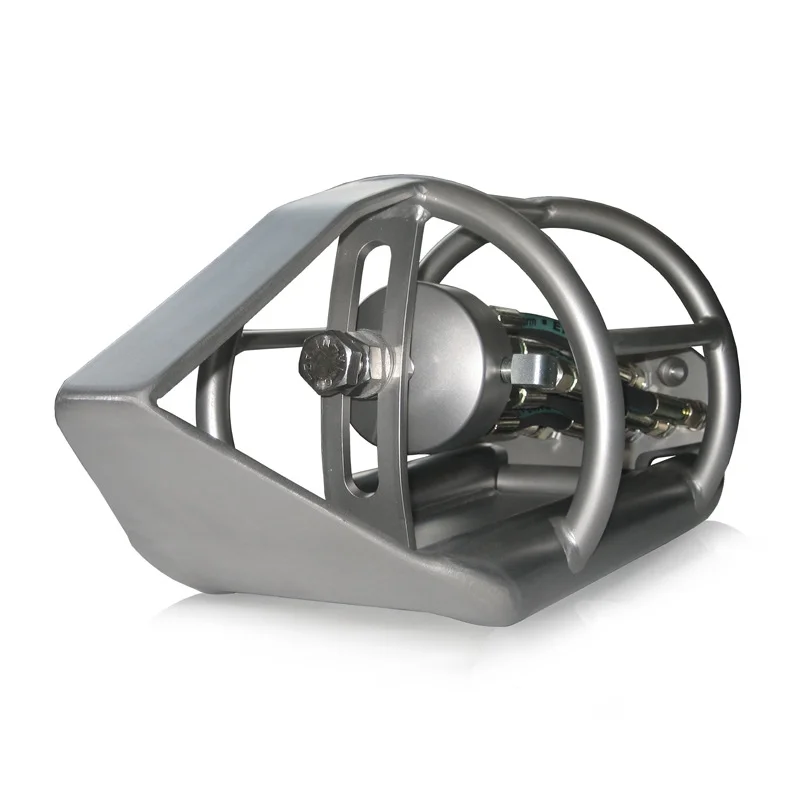

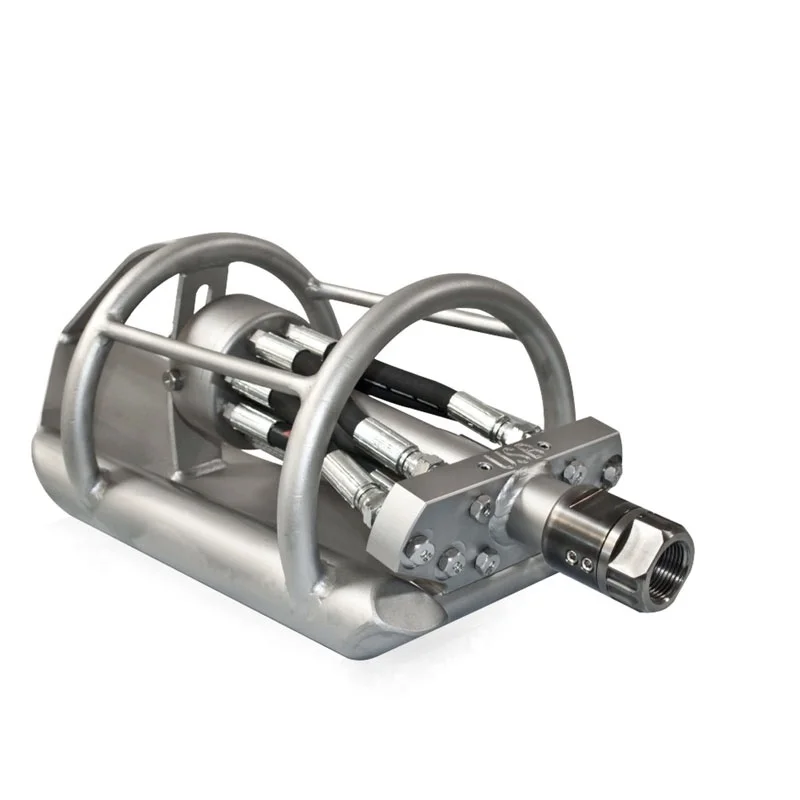

A high-efficiency floor/bottom cleaner made of hardened stainless steel, this nozzle includes an adjustable nozzle block that can be positioned between 0° - 30° depending on your application. The power manifold has built-in 3D fluid mechanics which produce an intense and forceful jet pattern resulting in outstanding excavation, traction, and transportation of material even under water! Roll over bars enable this nozzle to return to is correct position every time. One piece-ceramic inserts and a high-pressure swivel come standard with the Bagger Max 3D.

Overview:

  1. Large Round Pipe. Flat Bottom Pipe. Box Culverts.
  2. 3D Fluid Mechanics
  3. Recycled Water Approved
  4. Tier 3
Quantity:
Add To Cart
Product Specs Bagger Max 3D
Part
Number
Hose Con.
(NPT)
GPM/
Minimum
Pipe
Diameter (in)
Dimensions
(L x W)
Weight
(lbs)
Rear
Jets
Front
Jets
Radial
Jets
Product
Tier
1012 1 1/4" 80 32" - 120" 30.00" x 12.00" 115 12 Tier 3
1013 1 1/4" 80 24" - 72" 22.80" x 10.00" 66 10 Tier 3
1015 1" 40 15" - 48" 19.68" x 8.66" 53 8 Tier 3
1017 1" 40 10" - 30" 15.74" x 7.87" 46 6 Tier 3
1018 3/4" 35 10" - 30" 15.74" x 7.87" 33 6 Tier 3
SOURCE: USB-USA, LLC.
